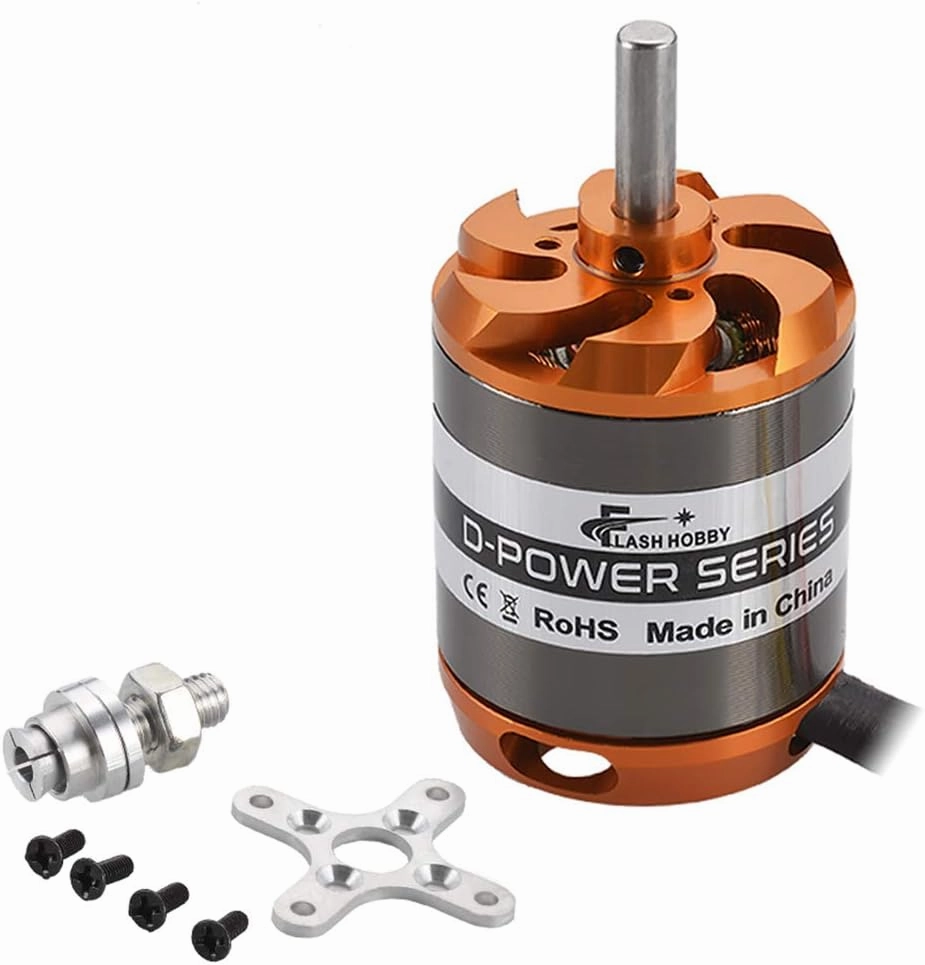

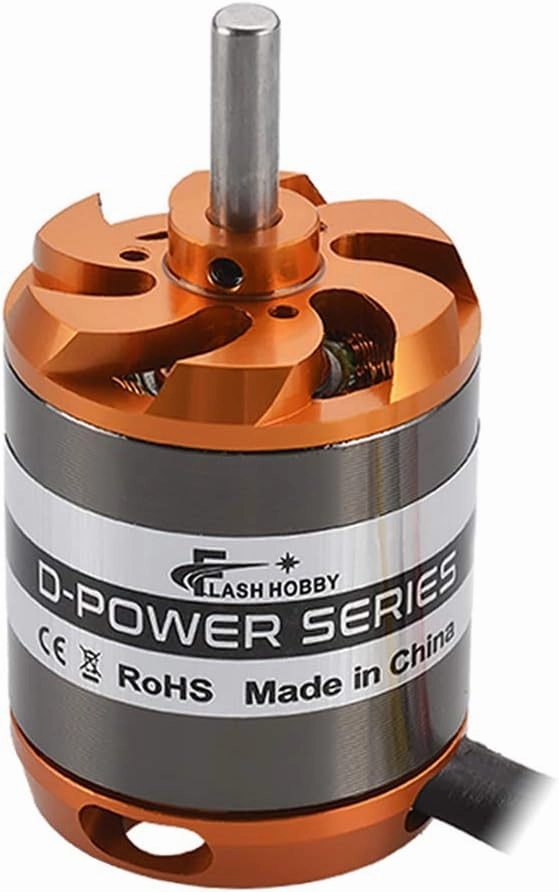

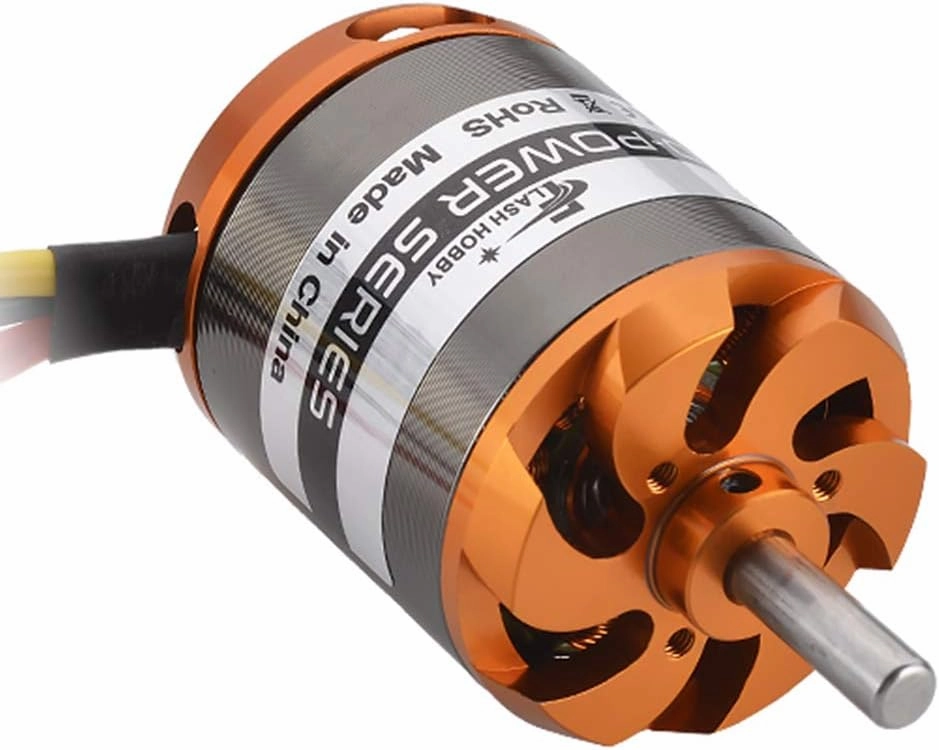

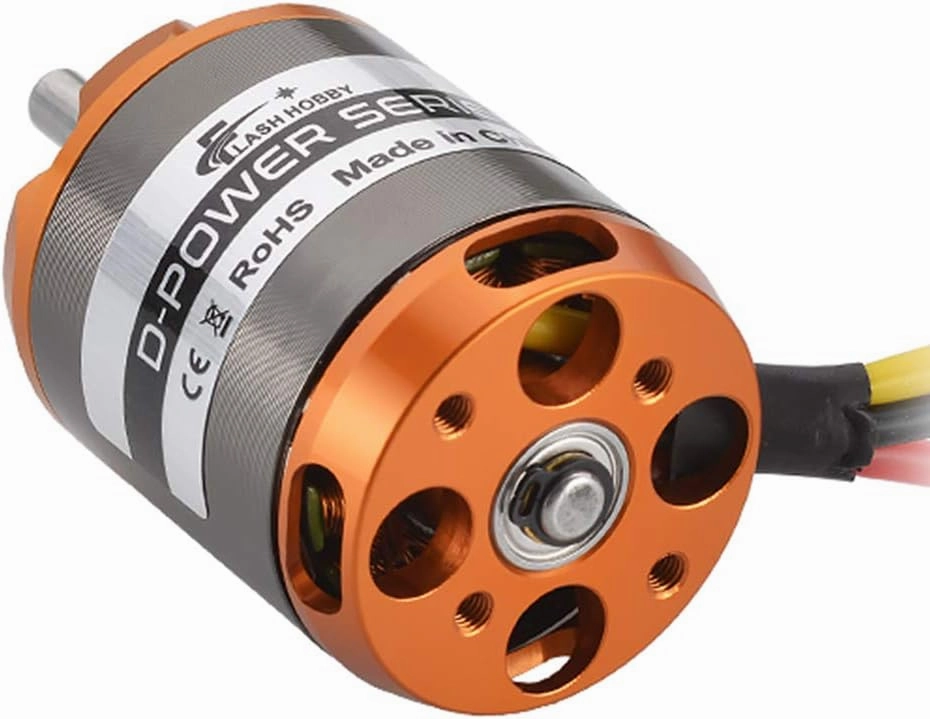

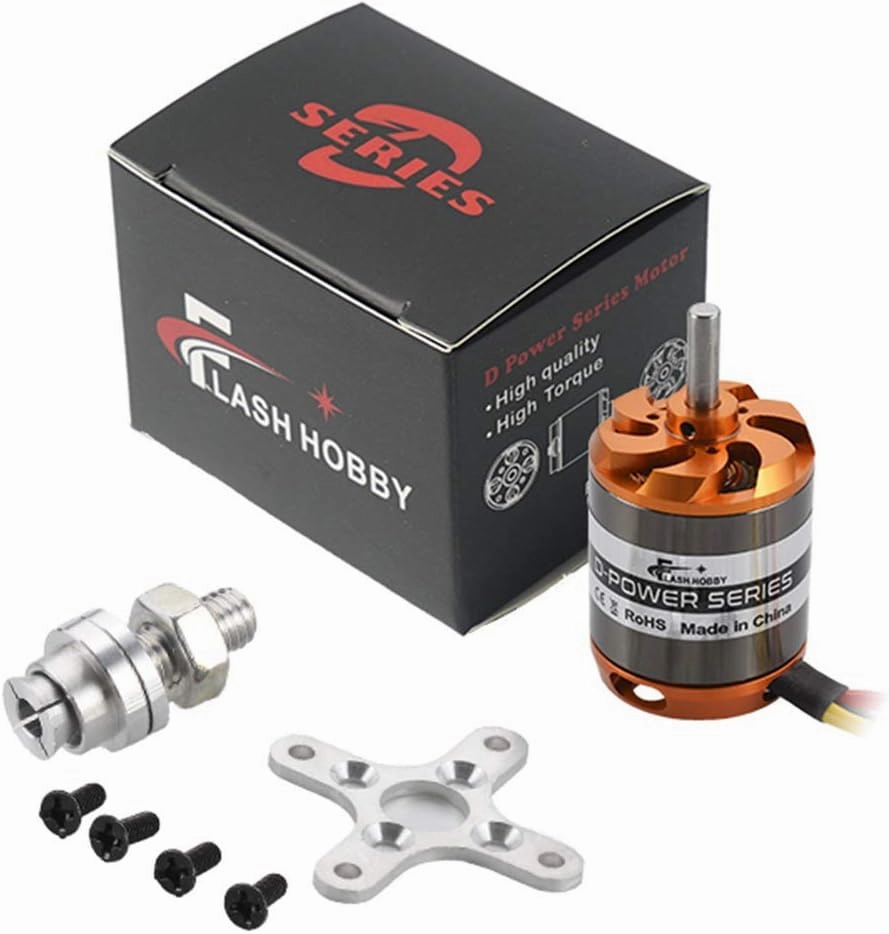

- High Torque——Precision engineered for maximum energy conversion. Precision balanced rotor, smoothness for best reliability, and maximum RPM
- Good Performance——Featuring 12N14P high torque design, strong thrust, more powerful than other ordinary brushless motors, high working efficiency

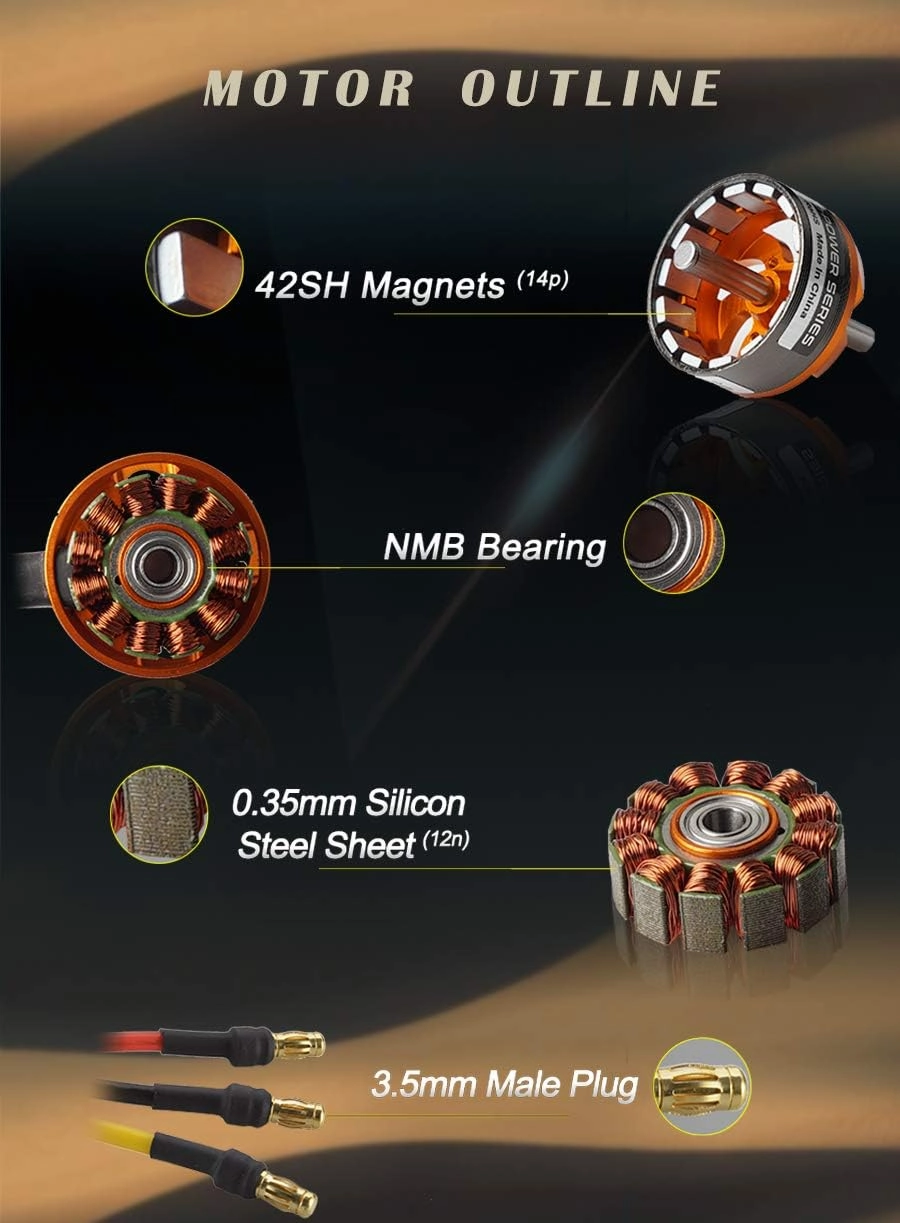

- Superior Material ——NMB bearing, high magnetic permeability, good insulation, and heat resistance
- Parameter——Brushless motor is 1100KV for fix-wing helicopter, and the max pull can up to 2150g. Shaft size is 5.0 x 65.5mm, recommend ESC for 40A and 12inch prop to use
- Function——High purity copper windings maximize efficiency, 3.5mm male plug, low friction, low noise, durable
Specification:
Weight: 156g
Motor size: 35 x 48mm
Shaft size: 5.0 x 65.5mm
Motor mount: 16 x 19mm (M3*4)
No.of Cells(Lipo): 3-5S
Recommended ESC:70A
Working temperature range: -0℃~ 80℃
Control method: use ESC and adjust PWM signal for control, PWM adjustment range 900-2100US
D3548-1100KV:
Max pull: 2150g
Volts: DC11.1~18.5V
Suggested ESC: 40A
Maximum power: 911W
Suggested prop: 12inch prop
D3548-900KV:
Max pull: 1780g
Volts: DC11.1~18.5V
Suggested ESC: 40A
Maximum power: 770W
Suggested prop: 11inch prop
D3548-790KV:
Max pull: 1650g
Volts: DC11.1~18.5V
Suggested ESC: 40A
Maximum power: 717W
Suggested prop: 12inch prop
